Voltage measurement across lumped component

Please login with a confirmed email address before reporting spam

how to measure the voltage drop across the resistor in an AC circuit.....

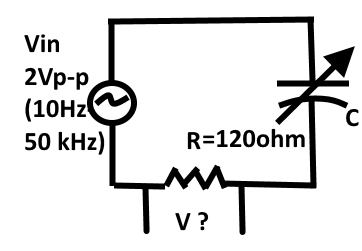

i am attaching the schematic of my circuit........

i need to know what parameter i need to set in the electric circuit physic in order to meassure the drop across the resistor......



0 Replies Last Post 19 mag 2015, 03:28 GMT-4
