Electric Double Layer

Please login with a confirmed email address before reporting spam

Hello,

I need some help and experience please, on modelling the Electrical Double Layer using the Electrochemistry module.

I need to extract the plots:
1. potential in solution Vs distance (from insulator) for different pH values of the solution
2. concentration of ions Vs distance (from insulator) for different pH values of the solution

I apply the Gouy - Chapmann - Stern theory to solve the problem. According to Nernst equation the pH sensitivity in solution is 59 mV per pH. I define the surface potential of the insulator in the solution to be 59 mV * pH and then I sweep the pH from 1 to 14.

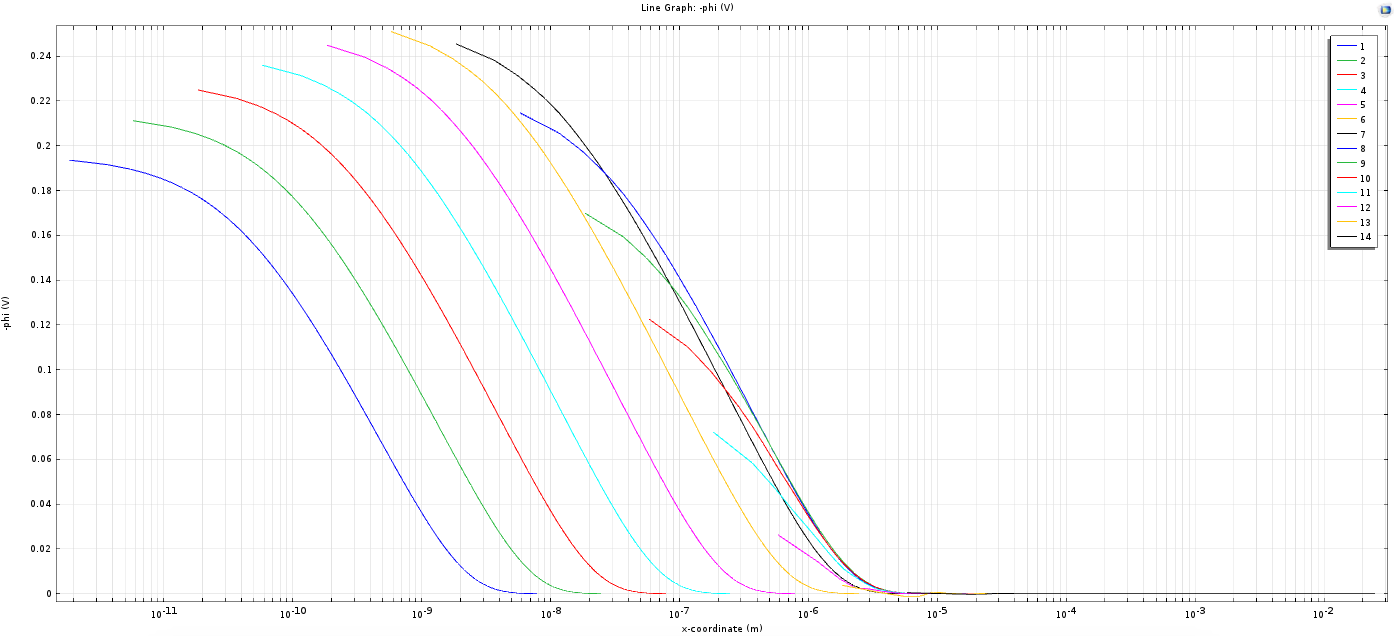

I expect to see a 59 mV shift at the surface of the insulator per pH. When I plot the surface potential Vs pH in MATLAB, I do get the 59 mV per pH slope. When I plot the surface potential Vs distance from insulator in COMSOL I don't get 59 mV per pH shift (plot attached).

Can someone please help me with this strange result?

Thank you!


0 Replies Last Post 28 mag 2015, 09:55 GMT-4
COMSOL Moderator

Hello Christoforos Panteli

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
