Simulating induction from a wire to a coil

Posted 19 lug 2015, 05:36 GMT-4 Version 5.0 1 Reply

Frank Neumann
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello community,

I am new to Comsol and try to make my first steps.
I want to simulate the induction of current from a live wire into a printed coil on a circuit board.
The coil is a few centimeters above that wire so it must be in 3d.

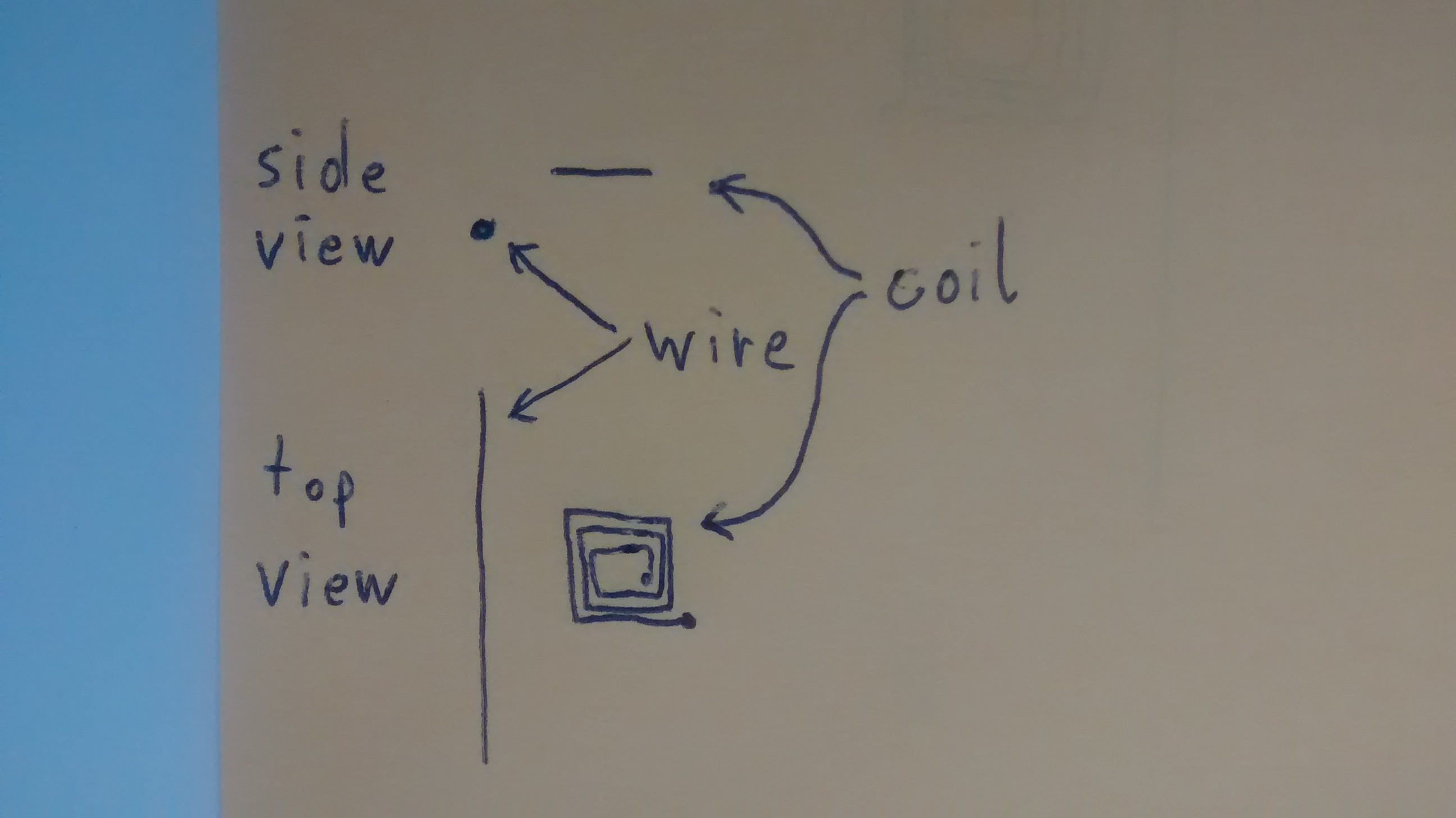

I added a picture to show what i mean.

Are there any tutorials that are similar to my problem?

Thank you for your help and suggestions!
1 Reply Last Post 3 ago 2015, 14:26 GMT-4
Frank Neumann
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 3 ago 2015, 14:26 GMT-4
Help me, please!
Help me, please!
