How do we set the axis in comsol 5?

Posted 20 lug 2015, 00:55 GMT-4 Results & Visualization Version 5.0, Version 5.1 2 Replies

Ash Smith
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi

I want to limit the x,y axis in comosl 5? I cant find a way to set the axis manually.

2 Replies Last Post 22 lug 2015, 20:11 GMT-4
Frank van Gool COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 21 lug 2015, 03:48 GMT-4
Dear Ash,

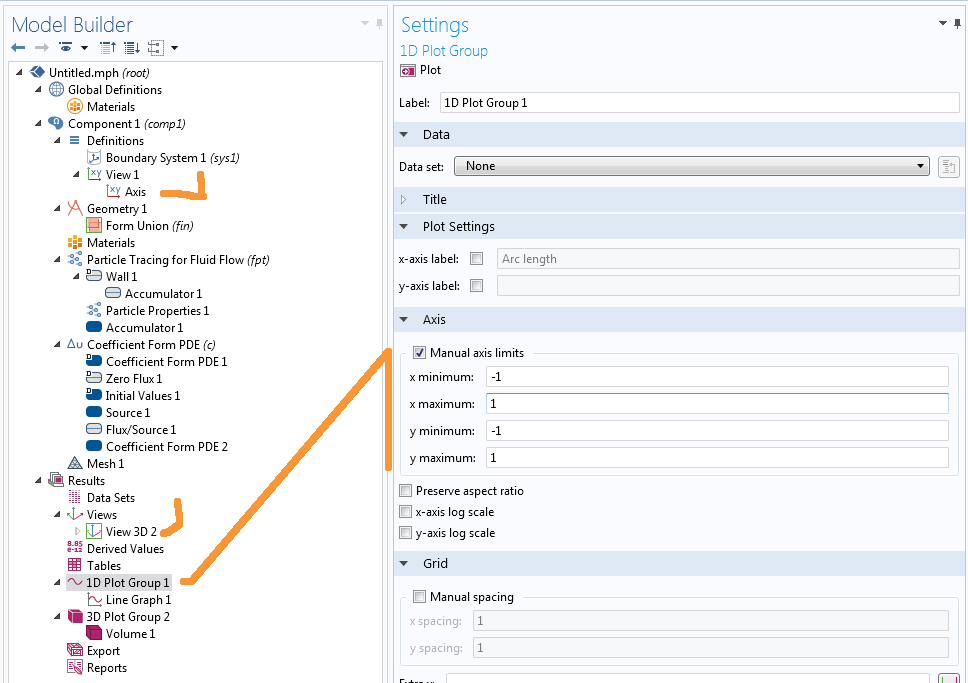

that would be under the "view node" in the definitions.
Sometimes this node is present in post processing as well. This happens when the component dimension is different than the plot you are creating (3D component and 2D plot).
For 1D plots you can change the axis limits in the "plot group node".

I hope this helps.

Best regards,
Frank
Dear Ash, that would be under the "view node" in the definitions. Sometimes this node is present in post processing as well. This happens when the component dimension is different than the plot you are creating (3D component and 2D plot). For 1D plots you can change the axis limits in the "plot group node". I hope this helps. Best regards, Frank

Attachments:

Ash Smith
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 22 lug 2015, 20:11 GMT-4
Thank you very much!

it worked
Thank you very much! it worked
