what is the function of "discretization" means in PDE problem?
Posted 6 ott 2010, 08:50 GMT-4 2 Replies
Please login with a confirmed email address before reporting spam
Hello, everyone!

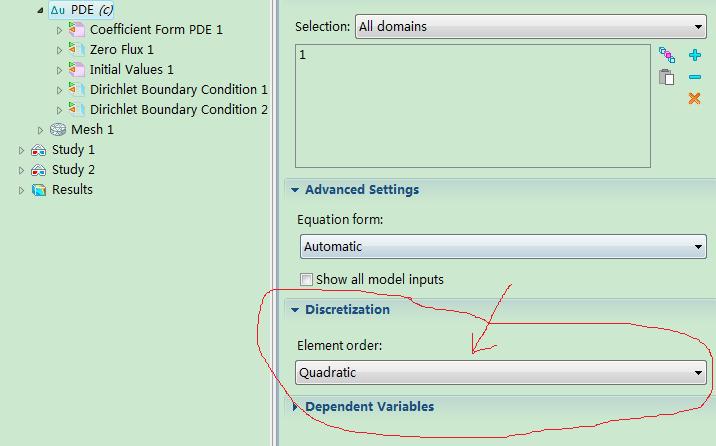

I am very confused when try to solve a PDE problem. There is a function setting of "discretization" in "PDE" panel in program GUI, and several options can be selected, such as "linear"," quadratic", et,al. The location of the setting in program is marked in the jpg file below. Differential compute result could be got if use differential option. so what is these result mean? which one is correct? And how to choose from the options? Maybe it is a solve method or precision controlling?
thanks!
youf.
I am very confused when try to solve a PDE problem. There is a function setting of "discretization" in "PDE" panel in program GUI, and several options can be selected, such as "linear"," quadratic", et,al. The location of the setting in program is marked in the jpg file below. Differential compute result could be got if use differential option. so what is these result mean? which one is correct? And how to choose from the options? Maybe it is a solve method or precision controlling?
thanks!
youf.
Attachments:
2 Replies Last Post 7 ott 2010, 00:26 GMT-4
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hi
it depends on the polynomial order used to define your shpaes, if you use linear you can get 1st order derivatives, if you use 2order you can get access to two derivatives and you have normally a better precision for a given mesh density, at the cost of additional DoF's to solve (intermediate points)
--
Good luck
Ivar
it depends on the polynomial order used to define your shpaes, if you use linear you can get 1st order derivatives, if you use 2order you can get access to two derivatives and you have normally a better precision for a given mesh density, at the cost of additional DoF's to solve (intermediate points)
--
Good luck
Ivar
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
HI,Ivar
Thanks for your help! I get it.
youf.
Thanks for your help! I get it.
youf.
