Cell Membrane Electroporation
Application ID: 137961

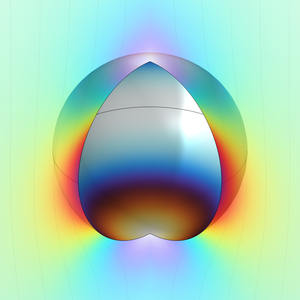

Electroporation is a technique where a localized electric field is used to generate nanometric pores in cell membranes, improving the cell permeability for ions and pharmaceuticals. This model shows the electroporation of a spherical cell by means of a nanosecond electric pulse. The model uses the Electric Current Interface, Boundary Ordinary Differential Equation Interface, and multiple Debye dispersive material data in the Time Domain and in the Frequency Domain.
The parameter values of this tutorial model were taken from Ref. 1 with the permission of the authors' research group (Laboratory of Biocybernetics, Department of Biomedical Engineering, Faculty of Electrical Engineering, University of Ljubljana, Slovenia), as well as from Ref. 2 and Ref. 3. The results of the present model are in agreement with those shown in Ref. 4.
References:
1. G. Pucihar, D. Miklavcic, and T. Kotnik, “A Time-Dependent Numerical Model of Transmembrane Voltage Inducement and Electroporation of Irregularly Shaped Cells,” in IEEE Transactions on Biomedical Engineering, vol. 56, no. 5, pp. 1491-1501, 2009.
2. R. Büchner, G.T. Hefter, and P.M. May, “Dielectric Relaxation of Aqueous NaCl Solutions,” J. Phys. Chem. A, vol. 103, no. 1, pp. 1–9, 1999.
3. B Klösgen, C Reichle, S Kohlsmann, and KD Kramer, “Dielectric Spectroscopy as a Sensor of Membrane Headgroup Mobility and Hydration,” J. Biophys, vol. 71, no. 6, pp. 325-3260, 1996.
4. E. Salimi, Nanosecond Pulse Electroporation of Biological Cells: The Effect of Membrane Dielectric Relaxation, master’s thesis, Dept. Electrical and Computer Eng., Univ. Manitoba, Winnipeg, 2011.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Tabella delle Funzionalità and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
