Electrostatic Discharge (ESD) Test of a PCB
Application ID: 109291

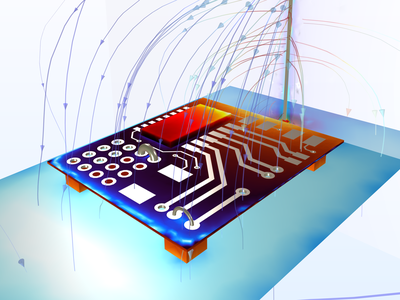

This example demonstrates how an ESD event causes logic error of a microchip on a PCB board. The ESD current is based on the extended HBM (Human Body Model) and it is predefined in the Lumped Port feature.
