Image to Curve Add-In Examples
Application ID: 84431

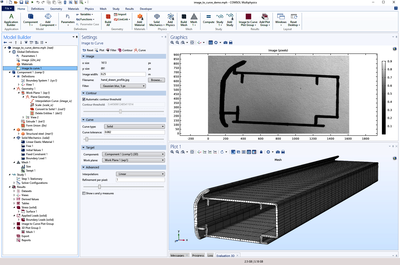

These example models demonstrate using the Image to Curve add-in, which is included in COMSOL Multiphysics®. One example shows a simple structural analysis. An image of an H-beam is imported to a work plane and then extruded. A distributed load is applied to the beam's top surface. The other example shows how to convert a profile, drawn with a black marker on a piece of paper, to a 3D model with a swept mesh.
Learn more about how to use the Image to Curve add-in in this accompanying blog post.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Tabella delle Funzionalità and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
