Ladder Frame
Application ID: 117811

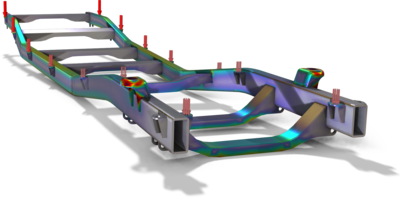

This example illustrates how to perform eigenfrequency and static analyses of a ladder frame structure for a light truck. Important modeling strategies are described. For example, how to convert a solid geometry to a shell model, how to make different types of connections, and how to apply a distributed load by specifying its resultant. It is also shown how to model welds, and how to evaluate them with respect to allowable stress levels.
