Modeling of a Tensegrity Table
Application ID: 113931

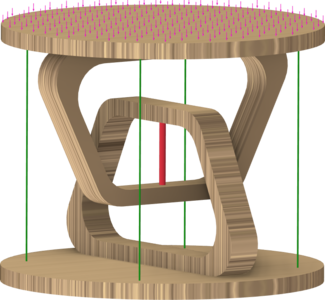

This example illustrates the modeling of a tensegrity table. The table is made of two rigid bodies connected through a central wire and four outer wires. Two cases are analyzed. In the first case, the top of the table is loaded with vertically downward acting load of varying magnitude. In the second case, a twisting moment is applied. In both cases, the applied load along with the weight of the table is supported by the wires.
Learn more in this related blog post: Modeling Tensegrity with a Floating Table
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Tabella delle Funzionalità and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
