Orbital Angular Momentum Beam
Application ID: 72511

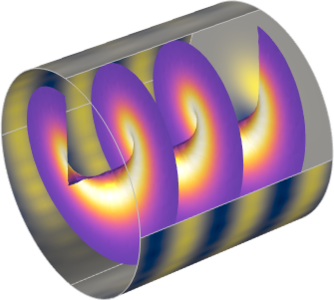

This model simulates Gaussian to Laguerre Gaussian beam shaping with the Beam Envelopes interface, the unidirectional wave formulation. The input beam is a focusing Gaussian beam with a topological spiral phase.
It is known that this phase mask converts a Gaussian beam to a donut beam. The phase rotates around the optical axis as the beam propagates. So the resulted beam is called the vortex beam, typically represented by the Laguerre-Gaussian beam.
This beam shaping can be done also by a spiral diffractive optic or a forked grating.
