Permanent Magnet Motor in 3D
Application ID: 47621
Permanent magnet (PM) motors are used in many high-end applications, such as in electric and hybrid vehicles. An important design limitation is that the magnets are sensitive to high temperatures, which can occur through heat losses caused by currents, particularly eddy currents.

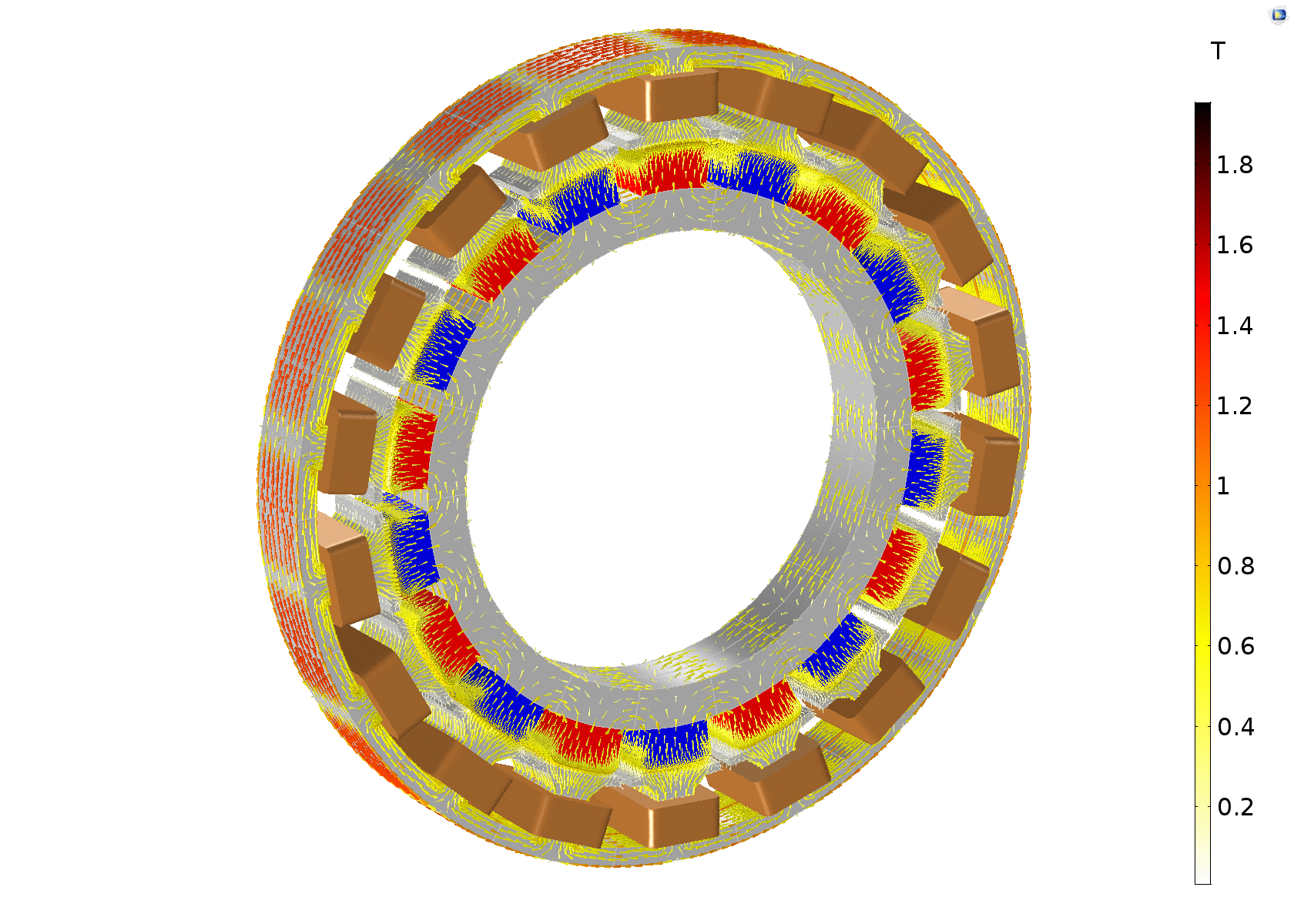

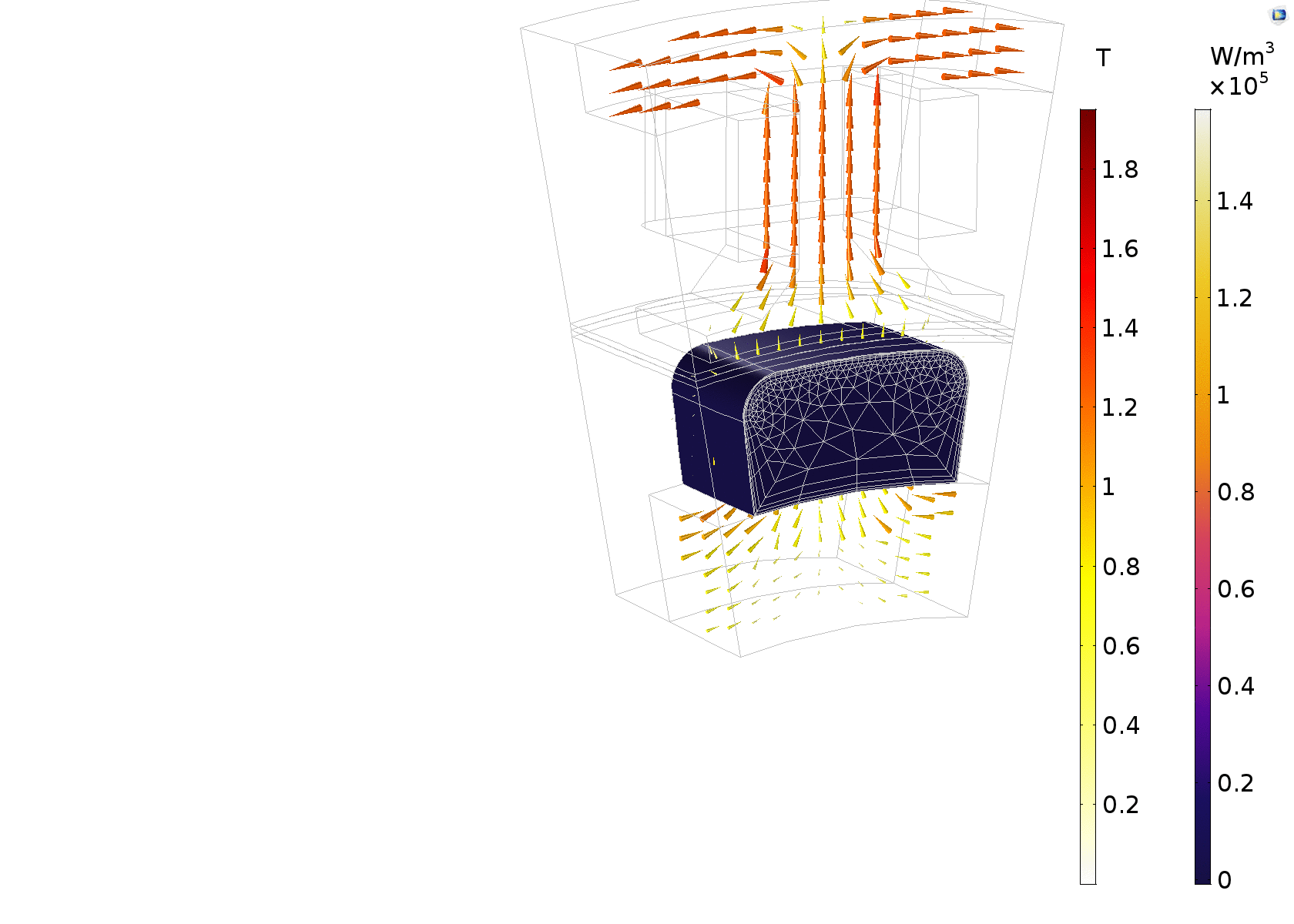

In this tutorial, an 18-pole PM motor is modeled in 3D to accurately capture eddy current losses in the magnets. The central part of the geometry, containing the rotor and part of the air gap, is modeled as rotating relative to the coordinate system of the stator. Sector symmetry and axial mirror symmetry are leveraged to reduce the computational effort while still capturing the full 3D behavior of the device.
