Hydromechanical Modelling of Gas Migration in Host Rocks for Nuclear Waste Repositories
Deep geological repositories (DGRs) are currently being proposed in several countries to deal with the nuclear waste. The safe long-term disposal of the waste is guaranteed by a multi-barrier system, which includes a natural barrier (host rocks) and an engineered barrier system. Large quantities of gas can be generated during the lifespan of the DGRs due to several processes, such as the corrosion of metal, water radiolysis or microbial degradation. The generated gas could potentially overpressurize the DGR, deteriorate the hydraulic and mechanical properties of the host rock and impact the long term safety of the DGR. Thus, the understanding and prediction of gas migration within the host rock and associated potential impacts on its integrity is critical for the long term safety of a DGR.

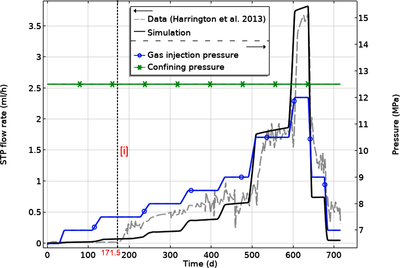

Numerous laboratory tests have shown that gas migration in host rock involves complex hydro-mechanical processes, and the classical concepts of two-phase flow in porous medium is inappropriate to predict this gas migration as well as capture the key HM processes. In the study, a coupled HM model, based on double-porosity approach, is developed and implemented into COMSOL Multiphysics® simulation software to assess and predict gas migration in sedimentary host rocks (claystone). The model takes into account the HM behavior of both the porous medium (representing the matrix) and the fractured medium (representing the fractures). The prediction capability of the model is tested against laboratory gas migration tests conducted on potential host sedimentary rocks (claystone). The simulated results are in good agreement with the experimental data, which shows the robustness of the developed model. The validation results have also shown that the developed model, can well capture the main experimental observations, such as the development of gas preferential pathways, volume dilation and gas induced fracturing.
References
ANDRA (2012) Référentiel du comportement THM des formations sur le site de Meuse/Haute-Marne. Rep. no. D. RP. AMFS. 12.0024, Chatenay-Malabry, France
Harrington JF, Noy DJ, Cuss RC (2013) The stress-path permeameter experiment conducted on Callovo-Oxfordian claystone. EU Rep. D
Johnson L, Marschall P, Zuidema P, Gribi P (2004) Effects of post-disposal gas generation in a repository for spent fuel, high-level waste and long-lived intermediate level waste sited in opalinus clay. No. NTB--04-06. National Cooperative for the Disposal of Radioactive Waste (NAGRA)
Marschall P, Gimmi T, Horseman S (2005) Characterisation of Gas Transport Properties of the Opalinus Clay, a potential host rock formation for radioactive waste disposal. Sci Technol 60:121–139. doi: 10.2516/ogst:2005008
NAGRA (2008) Effects of post-disposal gas generation in a repository for low- and intermediate-level waste sited in the Opalinus Clay of Northern Switzerland. Technical Report 08-07. National Co-operative for the Disposal of Radioactive Waste (NAGRA). NAGRA Tech. Rep. 08-07, Wettingen, Switzerland
Shaw RPP (2015) The Fate of Repository Gases (FORGE) project. Geol Soc Spec Publ 415:1–7. doi: 10.1144/SP415.17
