Investigation of a Hybrid Winding Concept for Toroidal Inductors Using 3D Finite Element Modeling

H. Schneider[1], T. Andersen[1], J. D. Mønster[1], M. P. Madsen[1], A. Knott[1], M. A. E. Andersen[1]
[1]Technical University of Denmark, Lyngby, Denmark

Published in 2013

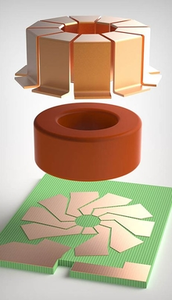

This paper investigates a hybrid winding concept for a toroidal inductor by simulating the winding resistance as a function of frequency. The problem of predicting the resistance of a non-uniform and complex winding shape is solved using 3D Finite Element Modeling. A prototype is built and tested experimentally to verify the simulation results. Finally, the COMSOL Multiphysics® LiveLink™ to AutoCAD® is utilized to highlight a bottleneck for this kind of winding scheme.
