Modeling of Nonuniform Magnetisation of a Ferrite Loaded Waveguide

H. V. Dixit [1], A. R. Jadhav [2], Y. M. Jain [3], A. N. Cheeran [1], V. Gupta [2], P. K. Sharma [3],
[1] Veermata Jijabai Technological Institute, Mumbai, Maharashtra, India
[2] Vidyavardhini's College of Engineering and Technology, Vasai, Maharashtra, India
[3] Institute for Plasma Research, Gandhinagar, Gujarat, India
Published in 2016

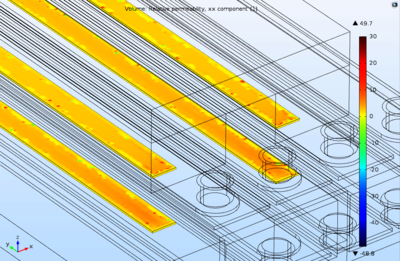

The modelling of a ferrite material is conventionally carried out using the Polder permeability tensor which assumes that the ferrite is saturated by a uniform magnetic field. This assumption is often inaccurate due to the constraints imposed by boundary conditions which renders the magnetic field non-uniform. This work proposes to overcome this by determining the magnetic field through a magnetostatic solver and then computing the RF permeability of ferrite using its solution. A case study of a ferrite loaded nonreciprocal phase shifter is taken.
