Heat transfer in assembly
Posted 28 ago 2019, 06:59 GMT-4 Heat Transfer & Phase Change, Structural Mechanics Version 5.4 1 Reply
Please login with a confirmed email address before reporting spam
Hello,

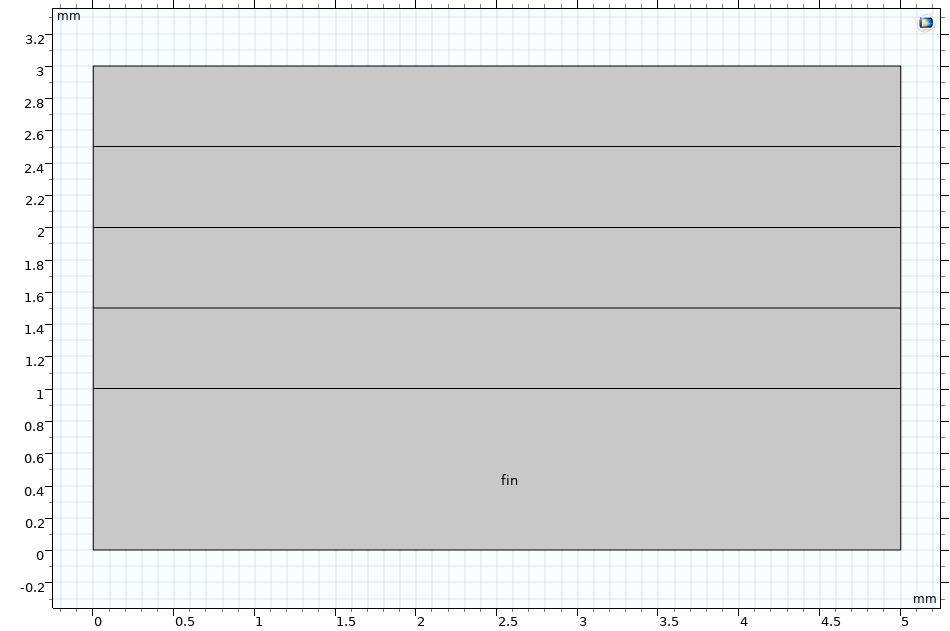

I am working on a simulation of FDM using COMSOL. The geometry I've attached with this discussion is 2D geometry of a simple model which assumes the layer by layer deposition process. I would like to use "form assmebly" option in the geometry, in order to study the heat transfer ad cooling process between the layers of the model. I have selected "Contact pair" in the assembly in the model. I tried linking the materials using "layered material link" option but the heat is not transferring between the layers.
In terms of physics I have used solid mechanics and heat transfer in solids. In solid mechanics I have paired the layers using the option "contact". In heat transfer, I have a moving heat source on the layers, so pairing the layers overrides the moving heat source.
I would like to know, how to link the layers of the model and study the heat transfer between the layers. Any help is much appreciated.
Many thanks, Anto
Attachments:
Hello Anto Antony Samy
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
Please login with a confirmed email address before reporting spam
Hello Antony,
Did you find an issue to simulate the heat transfer in assembly form and a thin layer? Because I am in the same situation as yours, so any help would be appreciated.
Thanks in advance. Karam
