how to plot velocity profile within a pipe elbow

Posted 5 giu 2013, 11:22 GMT-4 Fluid & Heat, Geometry, Results & Visualization Version 4.3a 0 Replies

Romani Patel
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,

Can anyone please guide me as to how to do I plot the velocity profile across the geometry which consists of two pipes and a 90 degree bend in between them.

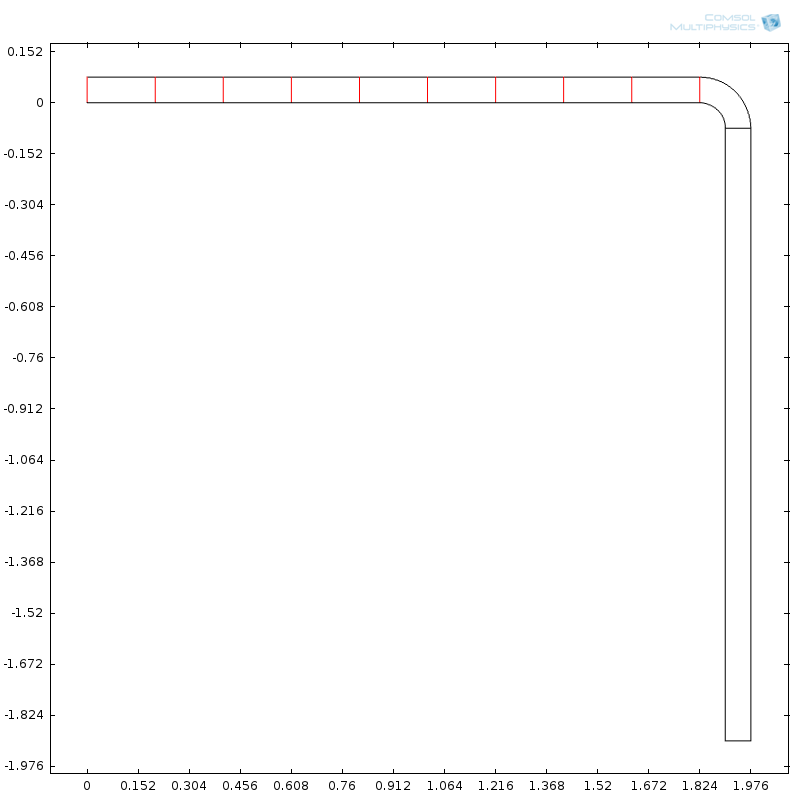

I have attached my model for reference and a screenshot.


I tried "create 2d line" and in that i input the coordinates that I wish to plot. However I can only input for one pipe at a time.

Thanks.
Romani
