Import autocad into comsol, arcs turn out to be weird

Please login with a confirmed email address before reporting spam

I tried to import the following design to comsol, but after importing, the model turns out to be weird. Not sure what happens during the importing.

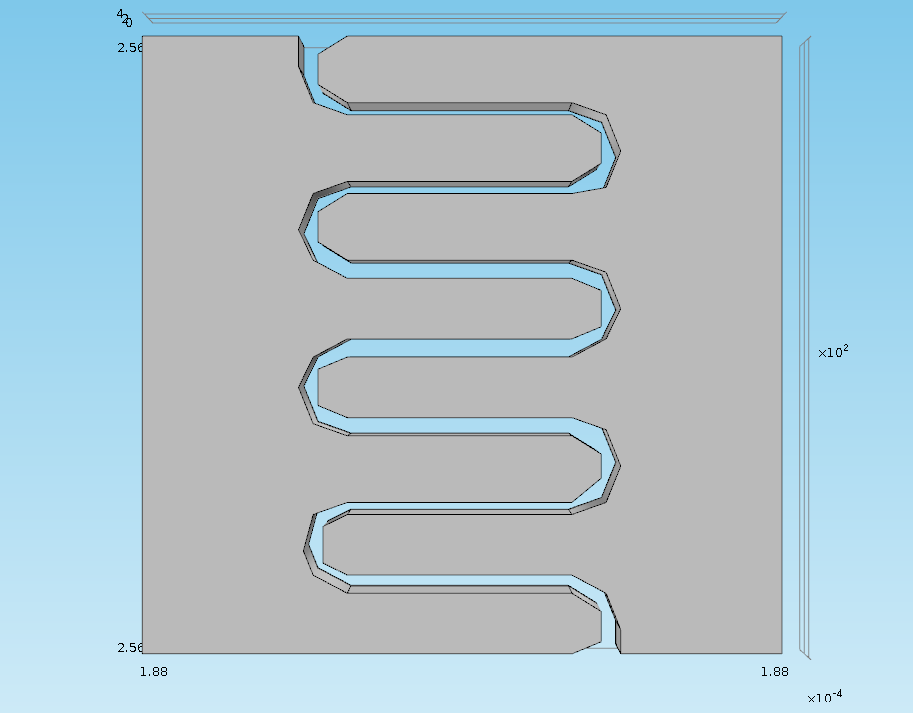

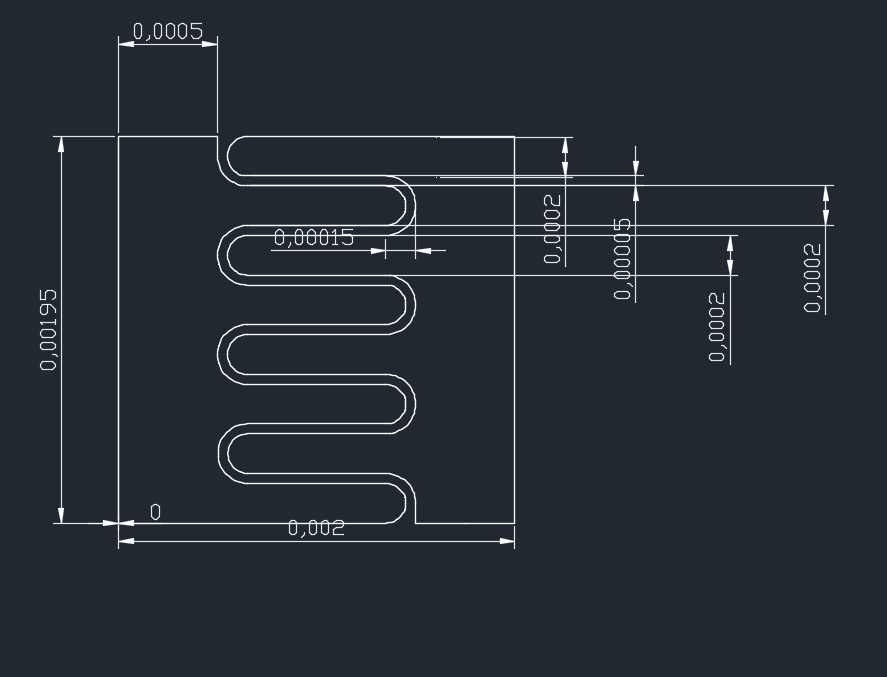

The attached files are the capture of autocad file and comsol file.


0 Replies Last Post 1 apr 2015, 18:22 GMT-4
COMSOL Moderator

Hello Rui Cao

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
