A Two Phase Model For A Five Layer PEM Fuel Cell MEA
Application ID: 79191
A low temperature PEM fuel cell produces water on the cathode side, and for higher currents liquid water will form in the porous layers and in the flow field
The presence of liquid water has a large impact on the humidification of the ion-conducting polymer electrolyte, the transport of the reacting gaseous species in the porous media, and the pressure drop over the flow field plates

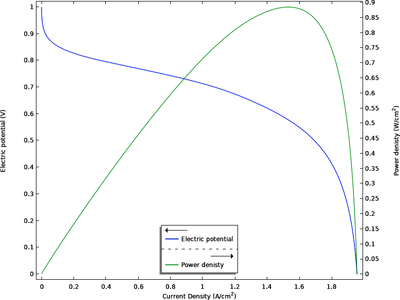

This benchmark/verification model reproduces the base case model results presented in "Free open reference implementation of a two-phase PEM fuel cell Model", Vetter and Schumacher, Computer Physics Communications 234 (2019) 223–234
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
- COMSOL Multiphysics® and
- either the Battery Design Module, Corrosion Module, Electrochemistry Module, Electrodeposition Module, or Fuel Cell & Electrolyzer Module
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Tabella delle Funzionalità and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
